Introduction

Messy databases slow everyone down. You’ve probably seen it: dozens of tables with unclear links, no constraints, and no one quite sure how they connect. Queries get slower. Reports are wrong. Fixing bugs eats hours.

I know this pain well. As the founder of ChartDB, I’ve spent years working with teams where poorly modeled relationships led to confusion, wasted time, and hidden errors. One of the biggest culprits? Missing or unclear foreign keys.

Foreign keys are the glue that holds your schema together - but in legacy or fast-growing systems, they’re often missing, hidden, or misused. With ChartDB’s AI Agent, you can now scan your schema, spot hidden relationships, and suggest foreign keys with confidence scores. No more detective work.

In this post, I’ll show you exactly how to do it.

What Are Foreign Keys and Why They Matter

A foreign key is a rule that links one table’s column(s) to another table’s primary key. It ensures that the child table cannot reference a non-existent row in the parent table. Think of it as a contract: “every order must belong to a valid customer.”

Real-World Analogy: Customers place orders. In your database, a customer_id in the orders table must match an id in the customers table. The foreign key enforces that rule.

Here’s a simple SQL example:

CREATE TABLE customers (

  id INT PRIMARY KEY,

  name TEXT

);

CREATE TABLE orders (

  id INT PRIMARY KEY,

  customer_id INT,

  order_date DATE,

  FOREIGN KEY (customer_id) REFERENCES customers(id)

);

Why Foreign Keys Are Important

• Data Integrity: Prevent orphan records. No order without a valid customer.

• Consistency: Enforce rules across tables automatically.

• Query Power: Enable reliable JOINs for analytics and reporting.

• Schema Clarity: Make relationships explicit and easier to document.

Technical Aspects of Foreign Keys

• Referential Integrity: Ensures valid parent-child links, no orphan records.

• Constraints: Rules like CASCADE DELETE, SET NULL, RESTRICT, or UPDATE CASCADE define what happens on changes.

• Indexing: Foreign keys don’t automatically create indexes, but indexing the foreign key column is essential for fast joins.

• Self-Referencing: Model hierarchies, like employees with manager_id linking back to the same table.

• Performance: Adds integrity checks but can add overhead on inserts, updates, and joins.

• Distributed Databases: Many distributed systems skip enforcing foreign keys at the database level, handling them in the application layer instead.

Challenges in Detecting Foreign Keys

Even though foreign keys are crucial, they’re often missing or unclear in real-world databases:

• Hidden Relationships: Business logic links tables, but no constraints are declared.

• Legacy Databases: Years of growth without proper constraints.

• Complex Schemas: Dozens of tables, unclear relationships.

• Manual Visualization Pain: Trying to trace relationships by hand is error-prone.

This is exactly the problem ChartDB’s AI Agent solves. It scans your schema, spots hidden relationships, and suggests foreign keys with confidence scores.

Step by Step: Detecting Foreign Keys with ChartDB’s AI Agent

1. Log into ChartDB.io
   Sign up or log in to your free account.



2. Import Your Schema
   Upload your SQL script or connect to your database to load tables into ChartDB.

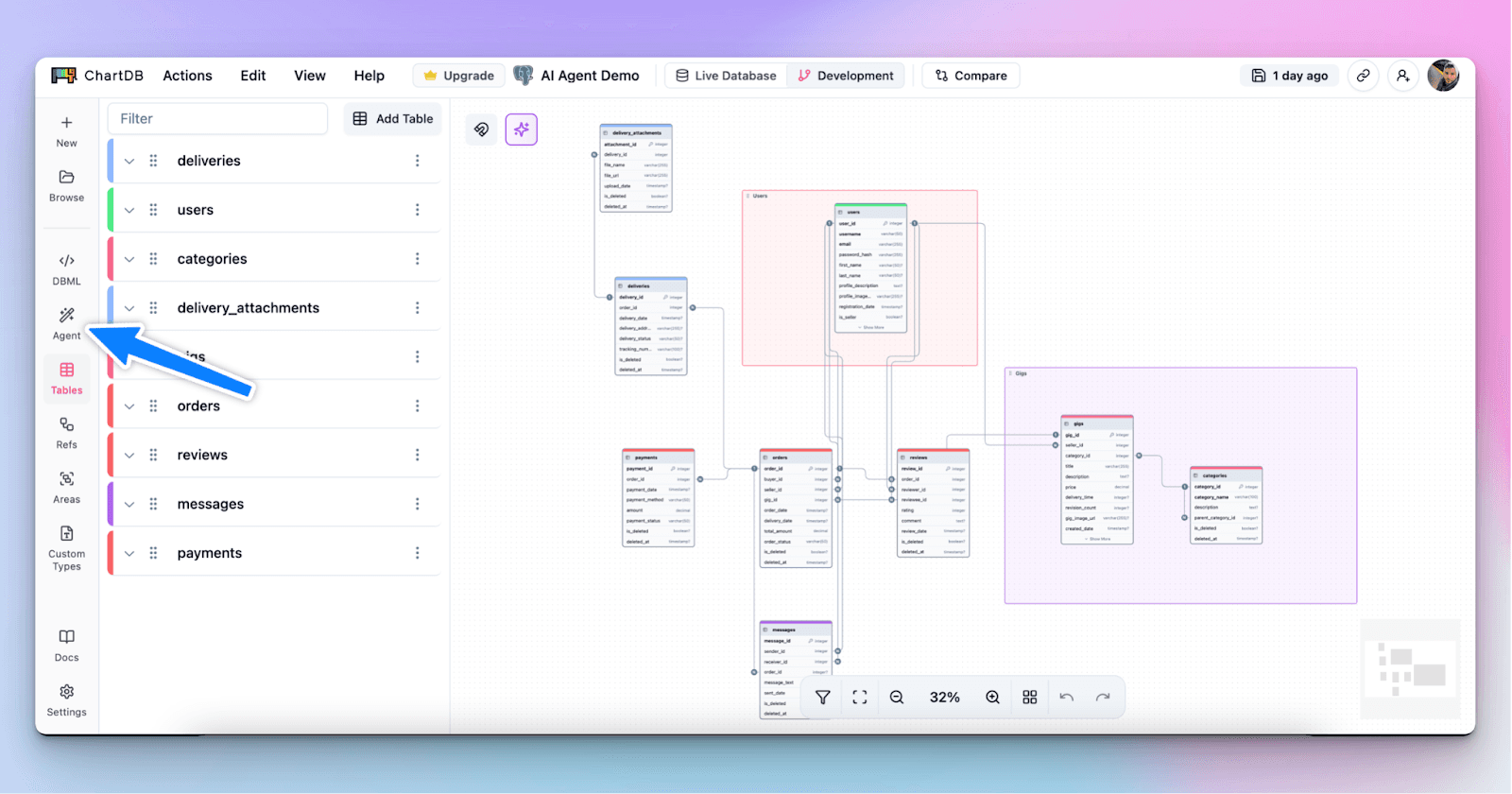

3. Click “AI Agent”
   Open the AI Agent from the diagram toolbar.

4. Run “Detect Foreign Keys”
   The AI Agent will analyze your schema and suggest missing or hidden foreign keys, with confidence scores.

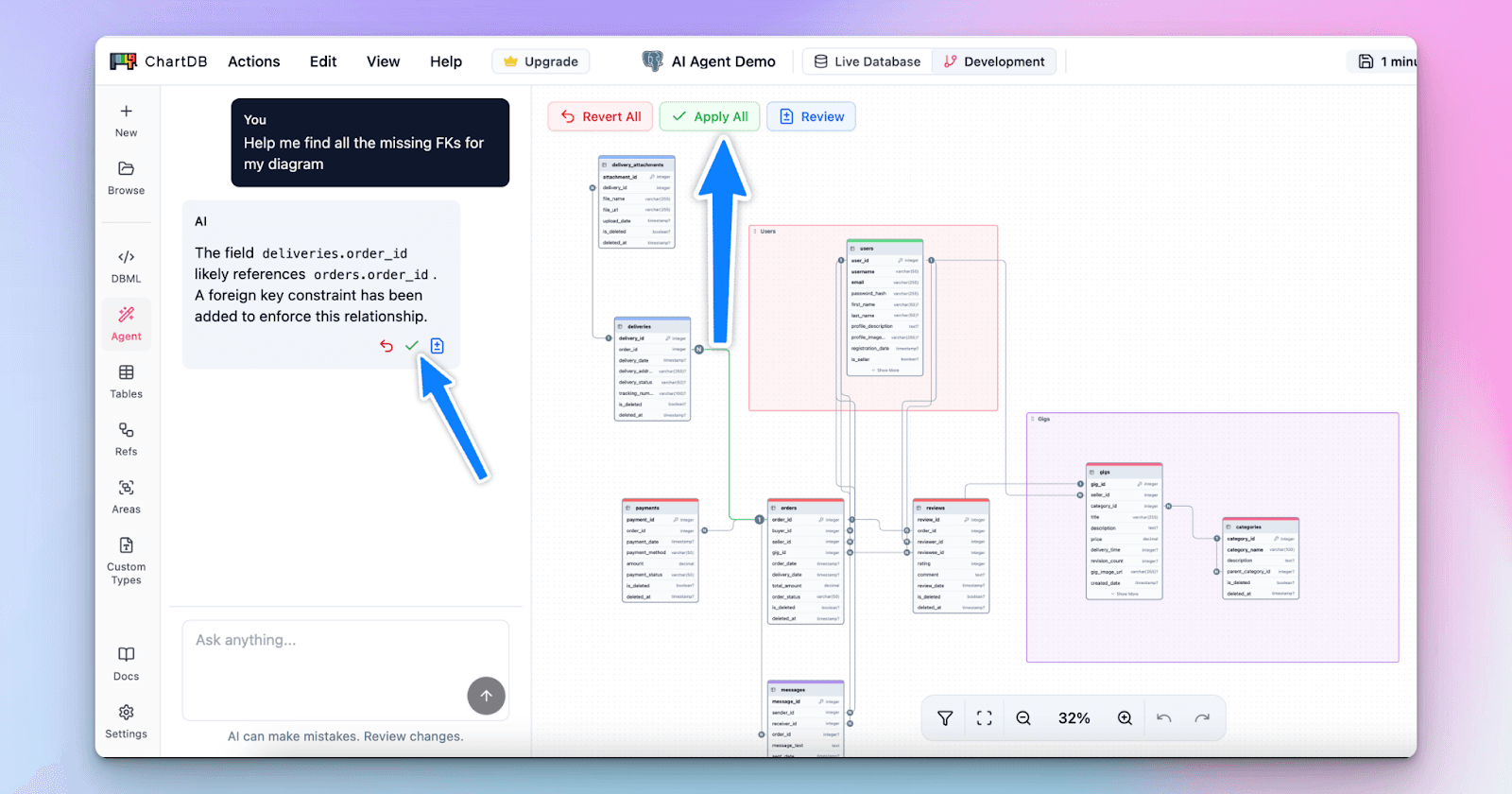

5. Review the Suggestions
   You’ll see proposed relationships highlighted directly on your diagram. Accept, reject, or edit them.



6. Apply Changes
   With one click, ChartDB updates your diagram and adds the foreign key constraints to your schema design.

7. Export or Share
   Export the updated SQL or share the diagram with your team. Everyone now sees the true relationships clearly.

Recently, I created a video wherein we used the AI Agent from ChartDB to create ERDs & find missing Foreign keys.

Conclusion

Foreign keys are the backbone of clean, reliable databases. They enforce data integrity, enable powerful joins, and make your schema easier to understand. But in real-world systems, they’re often missing or hidden.

ChartDB’s AI Agent makes it simple to detect and visualize foreign keys automatically. No guesswork, no manual diagramming. Just a clear, connected model.

Try ChartDB for free today and see how quickly you can uncover hidden relationships and strengthen your database integrity.
